- Connector:SMA or Customized
- Gain:5/28dBi
- Polarization:Vertical

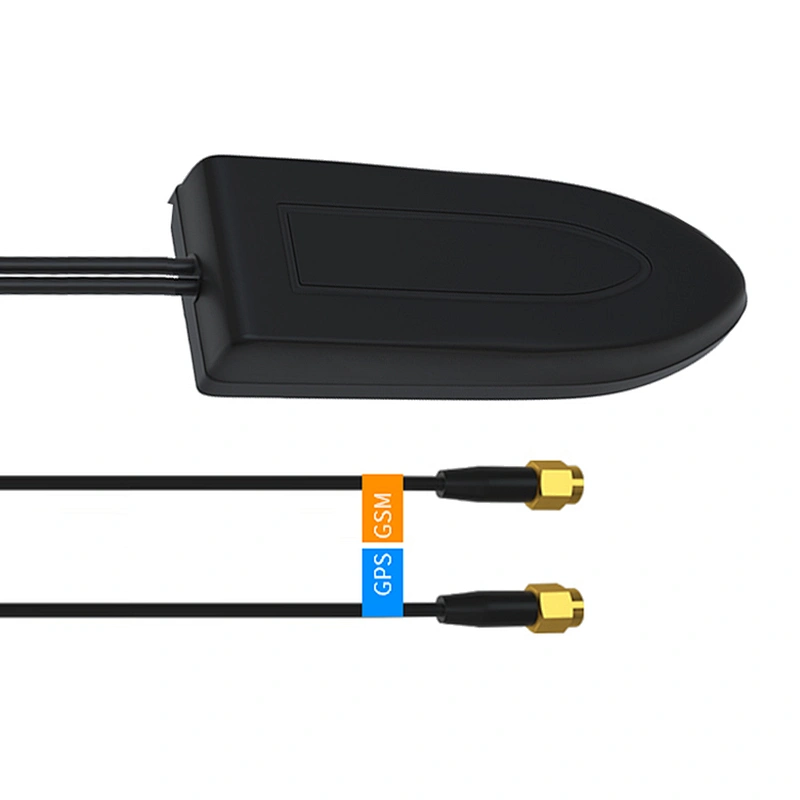

- Product name:GPS+GNSS Patch Antenna
- VSWR:Max 2.0
- Size:96x36.5x17.5mm
- Weight:128g
- Impedance:50ohm
- Color:Black
- Cable type:RG174
- Place of Origin:CN;GUA
- Brand Name:Hongsense
- Model Number:HSA-GPSJ
Product Details
Product Description
Mechanical | ||
Model No. | HSA-GPSJ | |
Center Frequency | 1575.42MHz+1602MHz | |
Impendence | 50Ω | |
Polarization | Vertical | |
Weight | 128g | |
Size | 96X36.5X17.5mm | |
Cable Type | RG174 Cable, 3 Meters (customized) | |

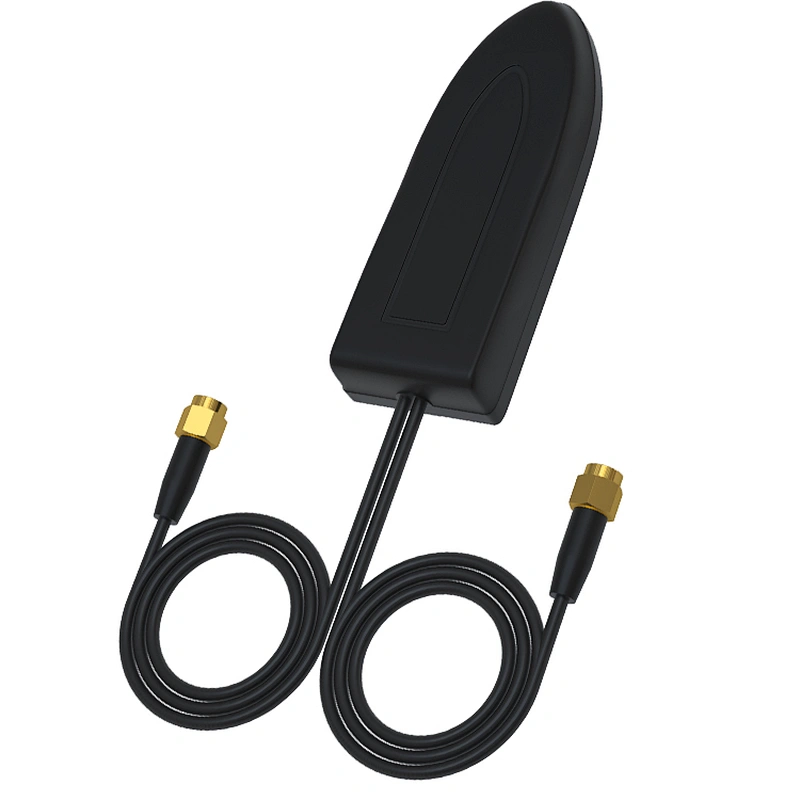

Connector | SMA or Customized) | |

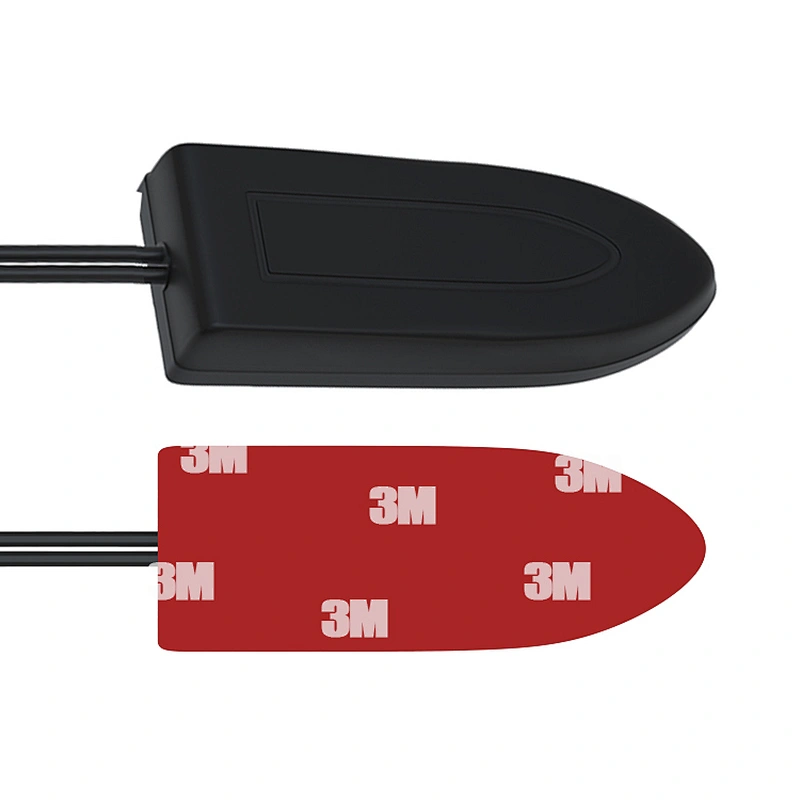

Mounting | Magnetic Mounting (Adhesive Mouting customized) | |
Housing | Black | |
LNA/Filter | ||
LNA Gain Without Cable | 5/28dBi | |
Noise Figure | 2.0dB | |
Filter Out Band Attenuation | (f0=1575.42MHz) | |
Mechanical | 7dB Min f0+/-20MHz;20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz | |
V.S.W.R | ≤2.0 | |
DC Voltage | 3V to 5V | |
DC current | 7-10MA | |
Environmental | ||
Working Temp | -40℃~+105℃ | |
Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis | |
Humidity | 95%~100% | |
Payment & Shipment
Packing & Delivery
Company Profile
Why Choose us?
FAQ
Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: What's your company MOQ?
A: The MOQ is 50PCS.

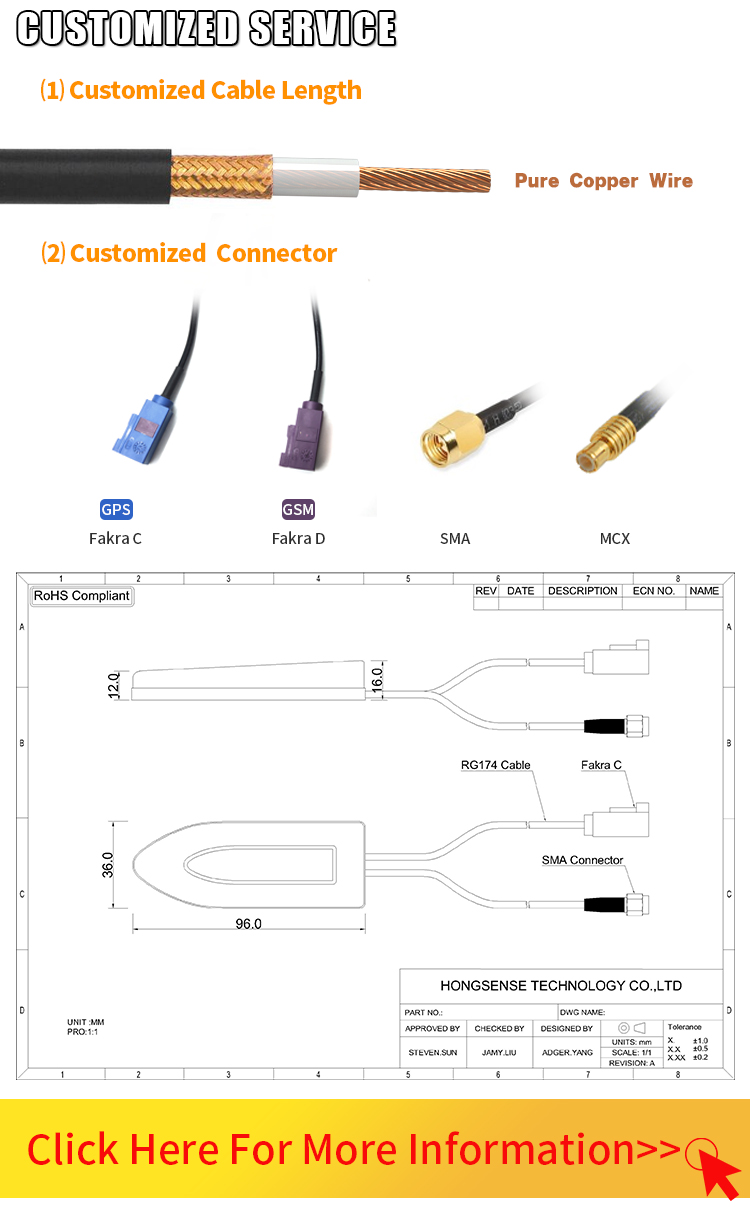

Q: Can your company accept customize?

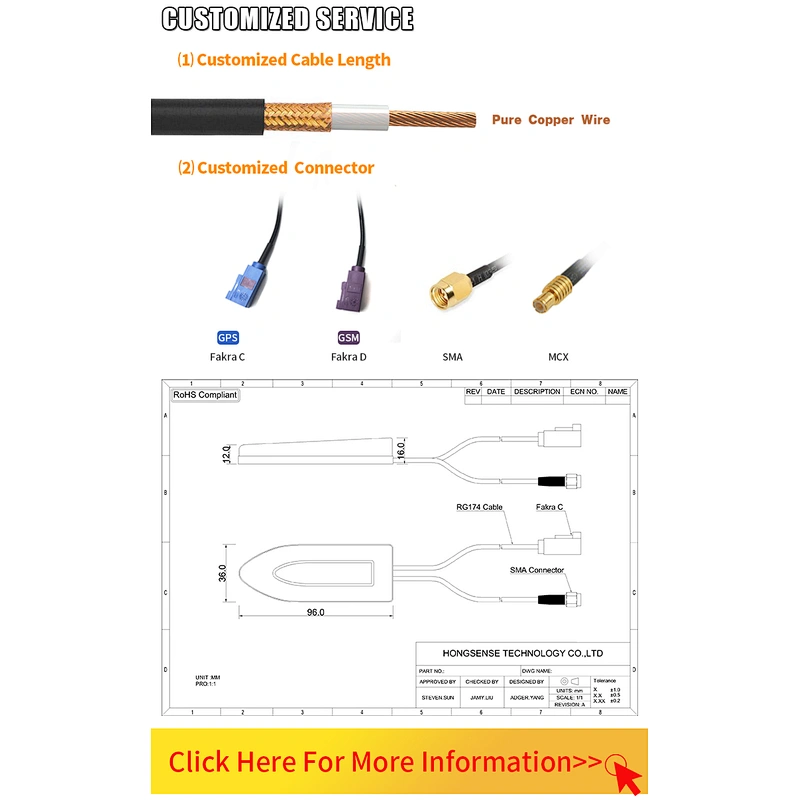

A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime. The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...
Q: What's your company MOQ?
A: The MOQ is 50PCS.
Q: Can your company accept customize?
A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.
Q: We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime. The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.
Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
