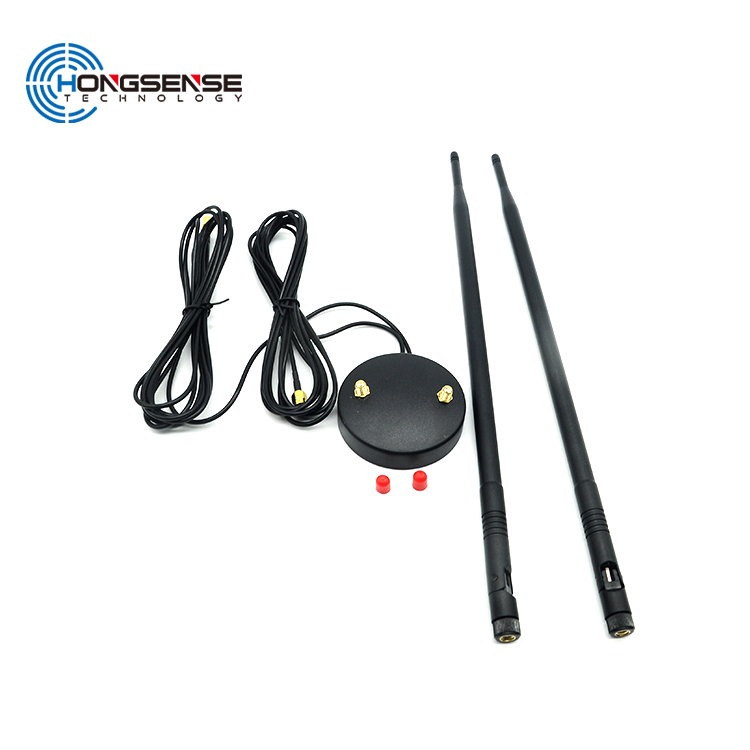

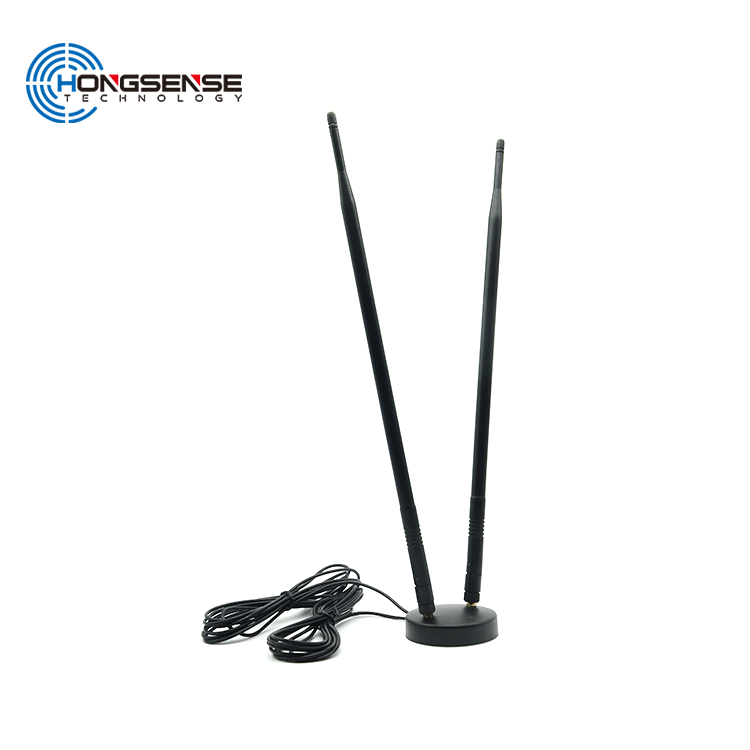

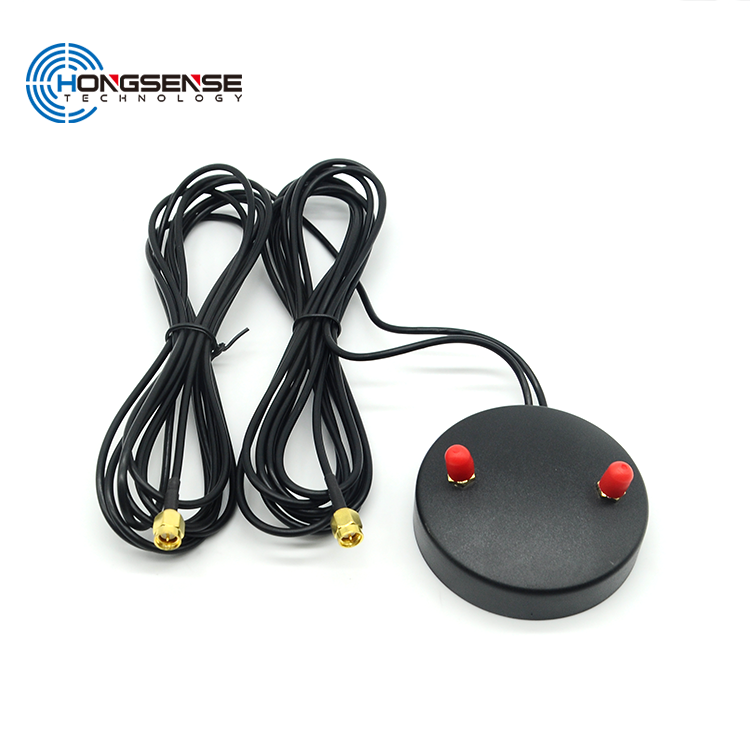

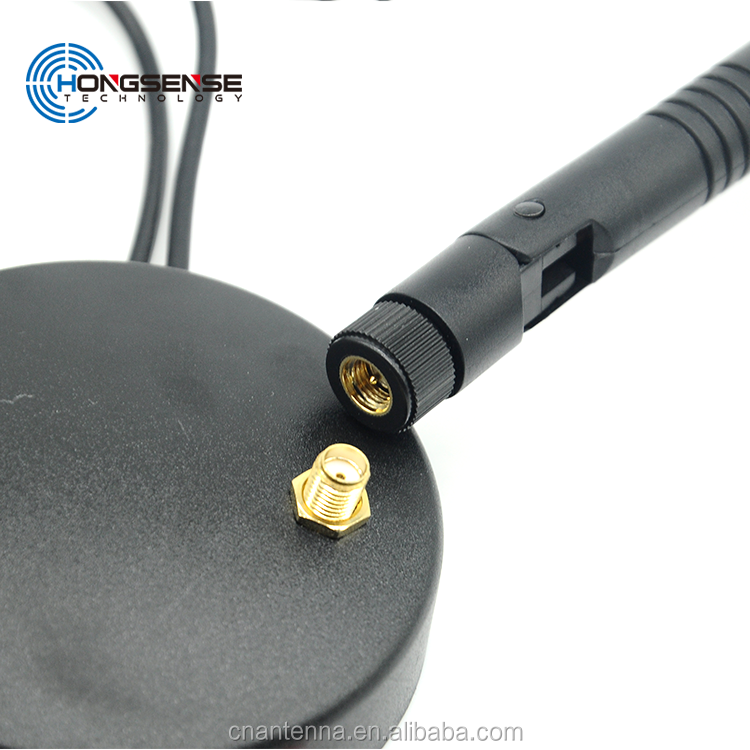

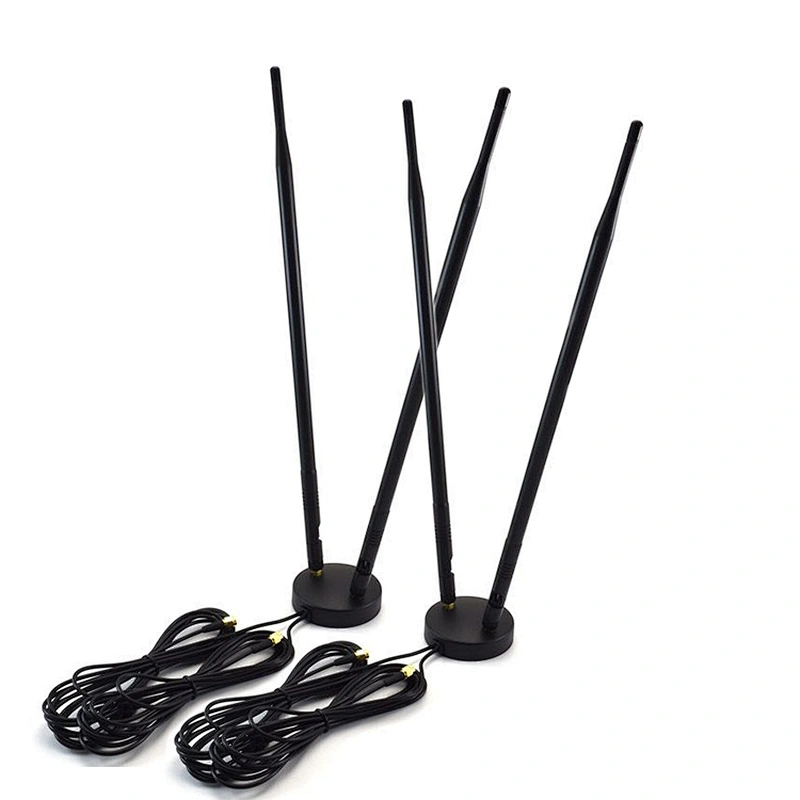

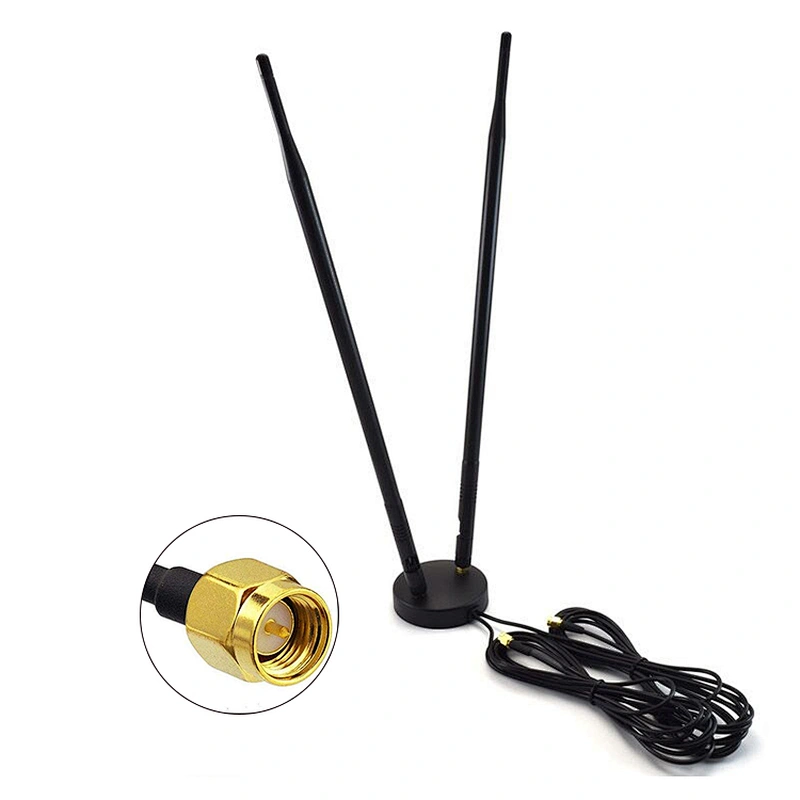

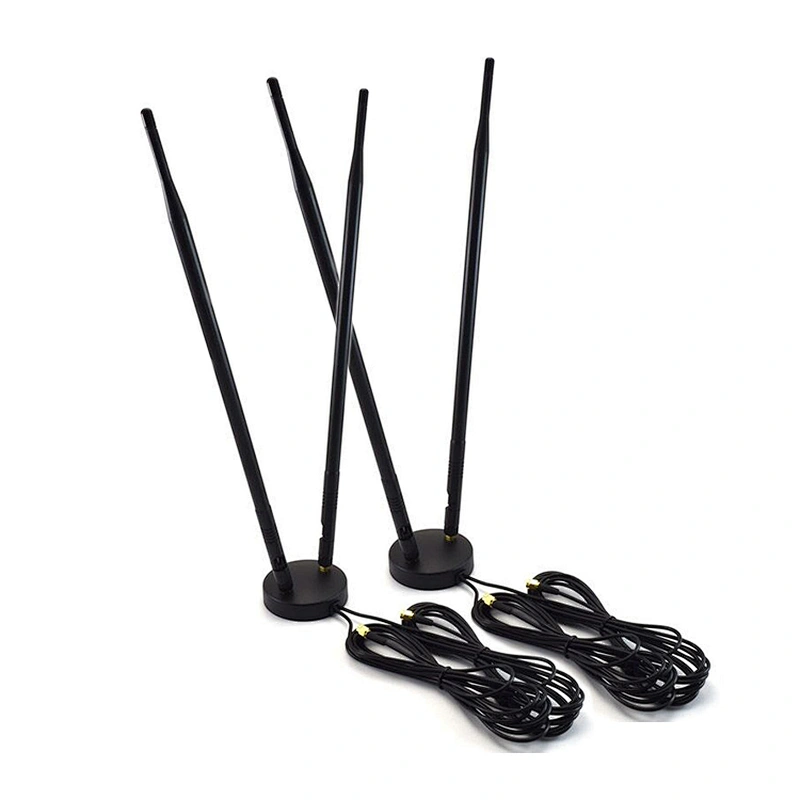

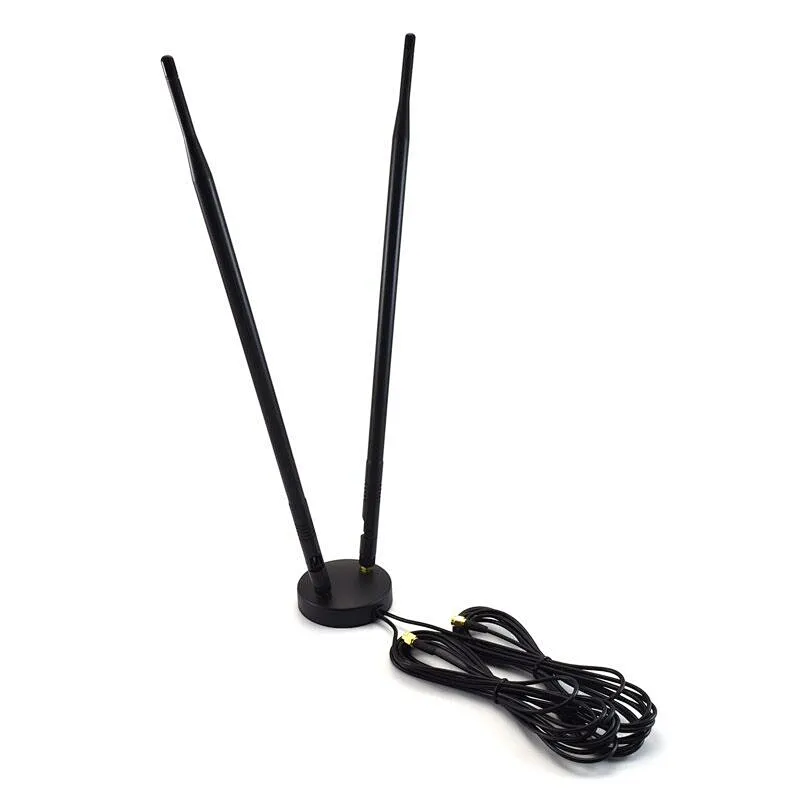

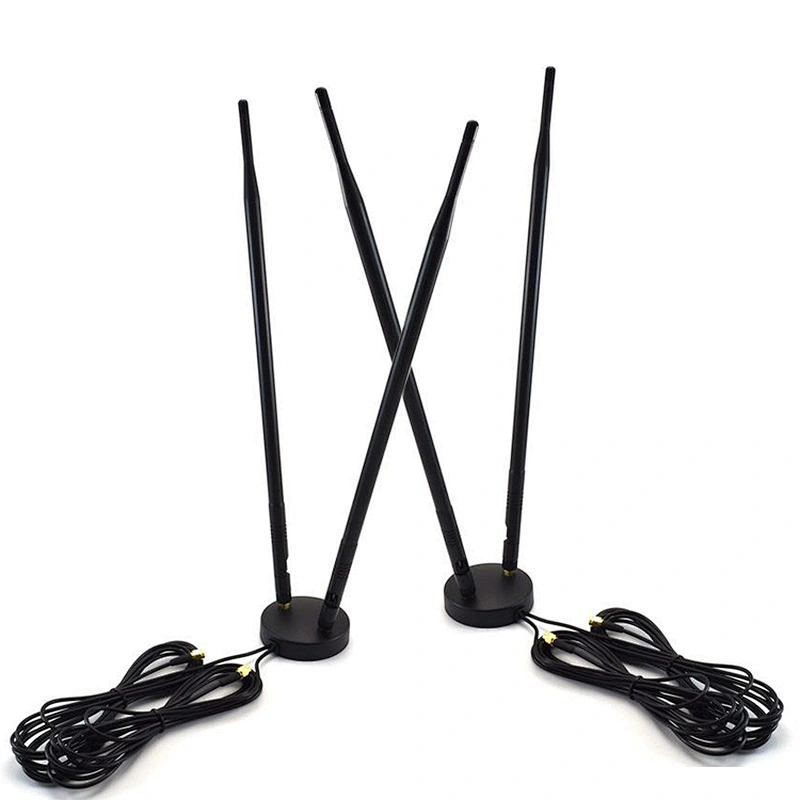

3G/4G Two 9 dbi Rubber Antennas With Magnetic Base Double SMA Male Connector

3G/4G Two 9 dbi Rubber Antennas With Magnetic Base Double SMA Male Connector

Model NO.: HSA-0727MSH
Price:: USD 4.79-5.49 / pieces
Minimum order quantity: 50 pieces
Supply Ability: 5000.0 pieces / Day
Country of Origin: Shenzhen

Quantity:

Product Description

Frequency range:700-2700Mhz
Gain:9dBi
Max power:50 -W
VSWR:<2
Impedance:50 Ohm
Polarization:Vertical
Color:Black and white or customze
Customization:available

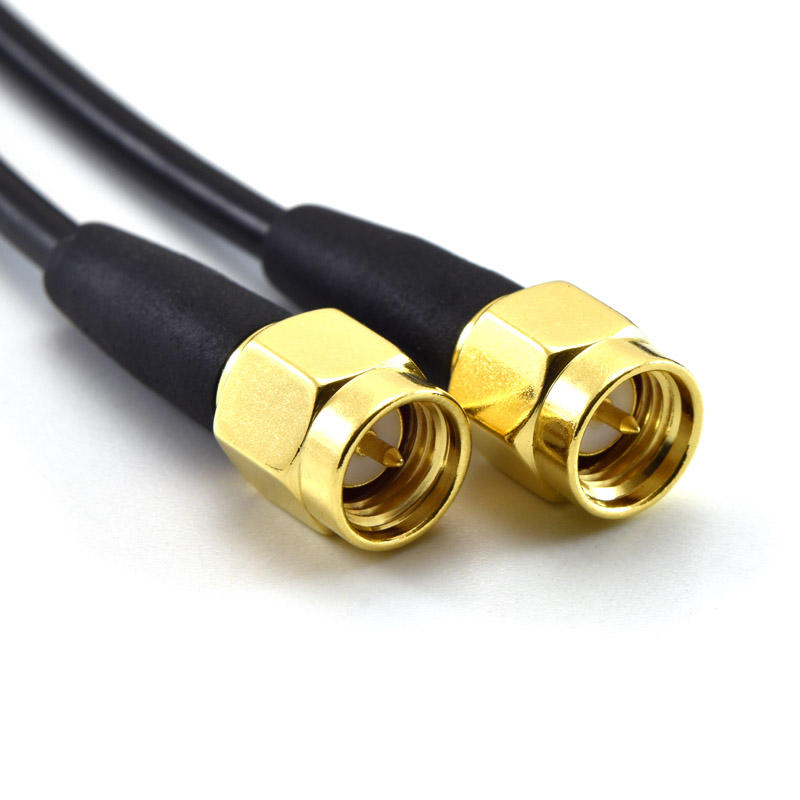

Connector:SMA Male or customize
Cable:RG174 3M Or customize
Place of Origin:CN;GUA
Brand Name:Hongsense
Model Number:HSA-0727MSH

Product Details

Product Description

Electrical Specifications
Model	HSA-0727MSH
Frequency Range-MHz	690-960/1710-2700MHZ
VSWR	≦ 2
Gain-dBi	9
Polarization	Vertical
Impedance-Ω	50
Max.Power-W	50
Mechanical Specifications
Connector	SMA Male Or Customize
Dimension-mm	73*376
Net Weight-g	54
Cable	RG174 3 meters or customize
Opration Temerature-℃	-40-+60
Description: Apply to 4G system

Payment & Shipment

Packing & Delivery

Company Profile

Why Choose us?

FAQ

Q: What type of antenna your company have ?
A: We have different frequencies and gains according to different types of antenna.
Gain: 2dBi, 3dBi,5dBi, 7dBi, 9dBi, 11dBi, 12dBi, 16dBi, 25dBi, ...
Frequency: 315Mhz, 433Mhz, 868Mhz, 900Mhz, 915Mhz, 1575.42mhz, 2.4G,5.8G,
RFID, WIFI, GPS, GSM, 3G, 4G, ... Outlook: Wall mount, Ceiling mount,Yagi, LPDA, Rubber, Patch, Panel, Magnetic...

Q: What's your company MOQ?
A: The MOQ is 50PCS.

Q: Can your company accept customize?

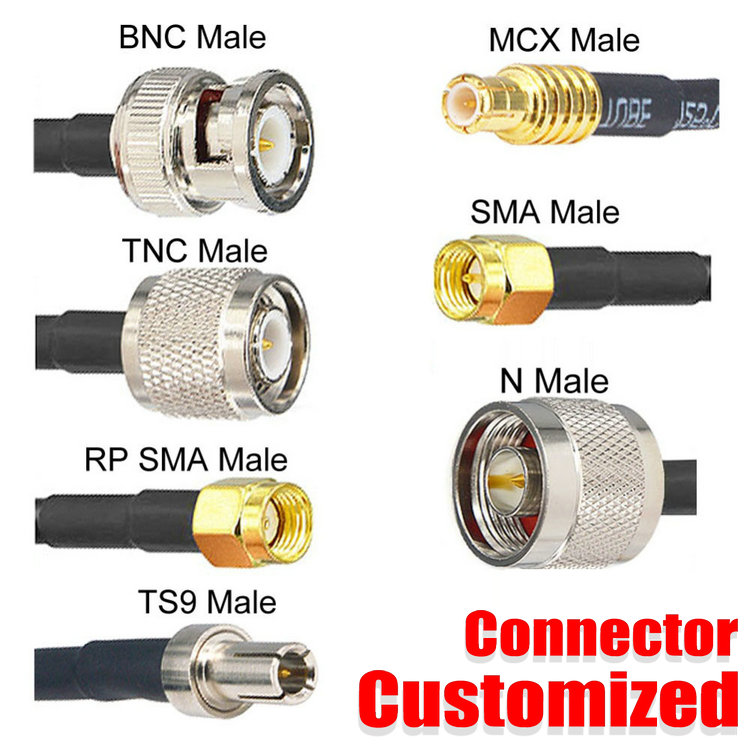

A: Of course. Personalized designs of the products according to customer's requirements are welcomed.For example, we can customize cable length(1M, 2M,3M...)and connectors(SMA serial ,MCX, Fakra, TS9, CRC9...) for you.

Q:We want to have several samples for test first,could you offer?
A: Yes, we can.Sample can send out once you ask for it, if the samples cost is higher ,we will ask for a sample fee. At the sametime.The Sample fee will return back in future order. If the samples cost is lower, we can send to you free , but you also need to take the shipping cost.

Q:How is the cost?
A:We would quote you the EXW price, and we can use your own courier account, such as DHL/UPS/TNT/FEDEX, and if you prefer to use ours and we would also quote you the shipping cost.
